500g Adhesion Testing Machine

500g Adhesion Testing Machine

  • 1
  • 2

Brand Name : POOTAB , PERFECT

Model Number : PT-6030

Certification : ISO9001

Place of Origin : Dongguan, Guangdong, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 sets per month

Delivery Time : 3 working days afer confirming order

Packaging Details : Neutral packing or as customers's request

Meet Standards : GB/4852, CNS 11888

Tilt angle : 20° ~ 40° adjustable, ( normal use 30°)

Item Name : roll ball initial tack tester

Weight : 500g weight Equipped

Run-up segment : 100mm

Contact Now

20° ~ 40° Adjustable Rolling Balls Tape Adhesion Tester , Tack Testing Equipment


Use Of Rolling Ball Tack Tester

Rolling Balls Tape Adhesion Tester use place the adhesive tape test sample cohere on tilt plate and the viscous face up, the tilt plate with 30° angle, taken sequentially from the largest to the smallest steel ball make the ball rolling on the sample free, recording adhesive on the sample more than 5 seconds the ball number, as the adhesive tape initial viscosity value


Primary Adhesive Testing Equipment Specifications :

ItemPT-6030 Rolling Balls Tape Adhesion Tester
Tilt angle20° ~ 40° adjustable, ( normal use 30°)
Rolling ballSteel, from 1/32” ~ 1”
Weight500g
Run-up segment100mm

Principle :

Definition: Initial adhesion: Objects and pressure-sensitive adhesive tape with small pressure brief contact between the cohesive surface, the adhesion of adhesive tape that effect on objects called initial adhesion.


Inclined planet roll ball device: Through steel and pressure-sensitive adhesive tape with small pressure brief touching between the cohesive surface, the adhesion of adhesive tape that effect on steel to test initial adhesion.

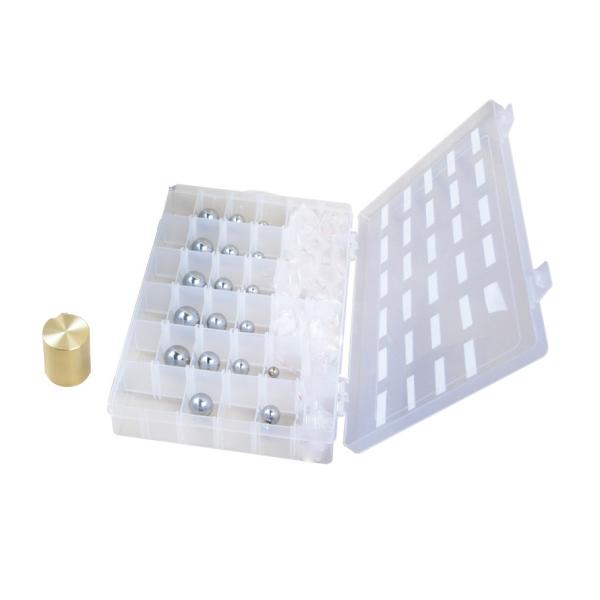

Primary Tack Tester Pic :
